This writing is a case study about when GreyMatters was asked to analyse a Rail Track Feeder Station in Europe. This Feeder Station had already undergone a preliminary Electrical Earthing Design Study. The principle constructor was concerned that the previous analysis had uncovered some strange numbers. These numbers, raising more questions than it had answered.
So, following a review of the previous electrical earthing design study, the potential sources of error and identified as:
- An inaccurate soil model (>10% RMS error)
- An incorrect fault level (100% error)
- Ignoring the contribution of the rebar mat
- Overlooking the conductive Steel fence
- Touch voltage hazards identified, yet left unmitigated
- Wrongfully using CDEGS MALT version on a rail system which contains long parallelisms
- Ignoring the impact of the Rail Bonds
Exploring the Problems
Mistake 1
Soil Model

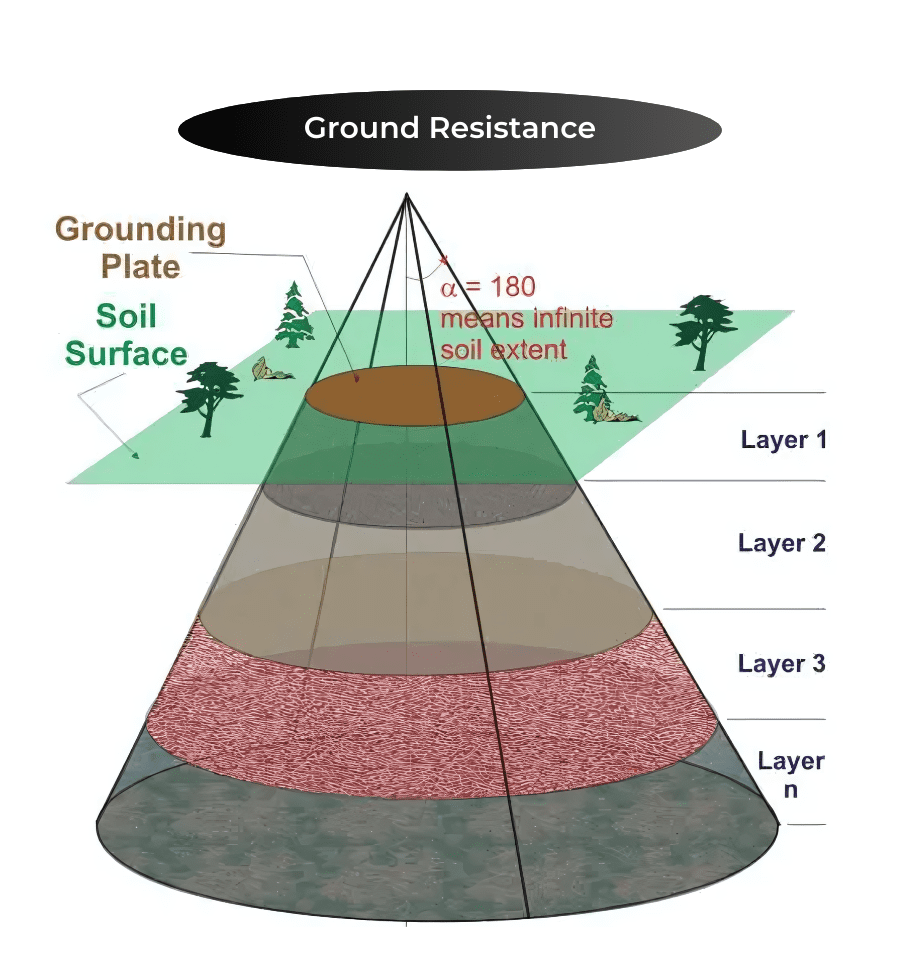

Observing that Electrical Earthing is not a precise science. It relies on the interface between two components, 1) the human-made (electrical system) with 2) the natural element, e.g. the geology of the site.
The human-made can be well defined. Its behaviour easily predicted and calculated. Whereas, nature has a way of throwing curved balls (unpredictability) which can make ‘making sense’ of this interface a lot more challenging.
Some of the best minds in the business have tried to simplify this interface into elegant equation(s), some of which feature in the legacy Electrical Earthing standards, such as BS 7453, IEEE Std80, BS7430 but even these equations rely on assumptions to simplify the mathematics into an advanced, yet manageable suite of equations.
The Soil Model, the foundational cornerstone and critical point ALL subsequent parts of the Electrical Earthing System Design thus built upon and 100% reliant on for their validity. This principle means, elimination of error at this stage is of absolute capital importance. In this case, studied, the stated error % reported was greater than 10% – this is an unacceptably high error as a starting point.
Mistake 2
Fault Level
The supplying authority or asset owner should accurately calculate fault levels. These days, usually done by circuit theory based computation, but the manual calculation is also practical.
For the case study, using a fault level twice the magnitude of the real situation and reported. This fault level was probably due to the incorrect data being provided or assumed. The net effect was to overstate any resulting EPR by 100% immediately, which would have led to significantly installing more buried copper than necessary.
Mistake 3
Inpendnce Contribution
Rail, rebar, and bonded equipment can all provide valuable contributions to the overall impedance of an Electrical Earthing electrode. As well as controlling the surface voltages and providing possible parallel Earth-return paths back to the source of the fault.
A challenge with a manual calculation of multiple returns is that without the use of high-end FEA tools, such as CDEGS, the complexity when considering multiple layer soil structures can defeat even the most accomplished of mathematicians. The various standards do not help much either and only provide simple calculations or indicative split or reduction factors for guidance, but applying these without considering the full context, is not a good idea.
Mistake 4
Spotting the risk but not doing anything about it
Since the mid-2000s, there’s been a paradigm shift away from manually calculating final Earth resistances of earth mats to understanding and ‘controlling’ how a human being interacts with a system in fault. The standards now set limits on the step and touch voltages during fault conditions.
Touch Voltage
Touch voltages relatively simple to explain, simply a voltage caused by a potential difference between one thing you can touch and another.
Step Voltage

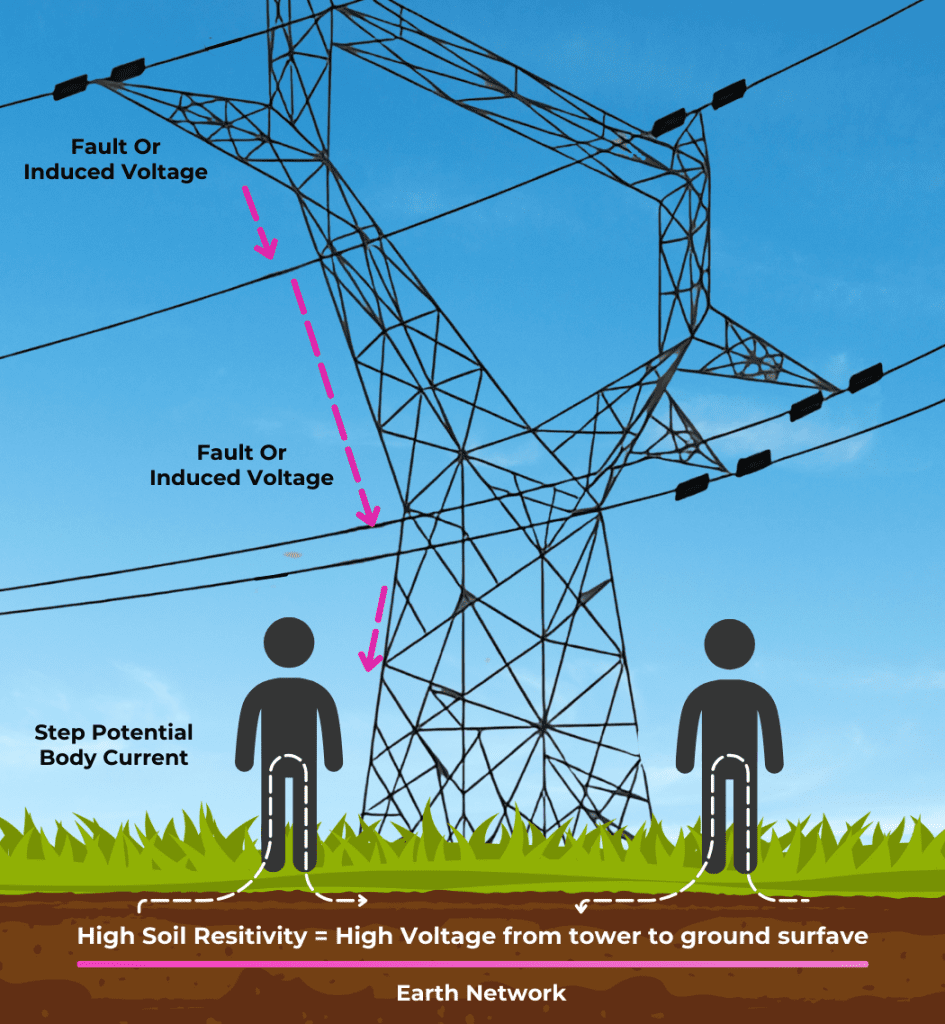

Step voltages are simply the potential difference between your feet. By looking at the human’s physical ‘points-of-contact’ or interaction with an energise system and controlling this interface to stay BELOW permissible limits.

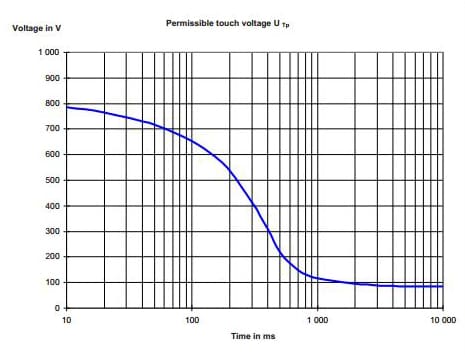

The IEC defines permissible limits in a set of plot curves that map out the survivability of a typical population. In the UK, when considering earthing system design we use the IEC C1 curve, for which 95% of people will survive an electric shock below the curve – this implies 5% will not survive, so it’s essential to understand the risk is probabilistic.
In the rail environment, a different standard applies in the EU, which uses different calculations to set the touch voltage limits. Unfortunately, in this case, the previous earthing design study identified the magnitude of these touch/step voltages but offered no advice or measures to lower them to within the permissible limits – so, effectively the design (as presented) remained in a state that could kill or injure anyone touching or in the immediate proximity of the site.
Mistake 5
Software Selection
XGSLabs is a powerful tool for earthing design that ensures accuracy and reliability. It offers advanced modelling capabilities that address the complexities of soil resistivity and conductor interactions, making it the preferred choice for large-scale projects where precision is crucial.

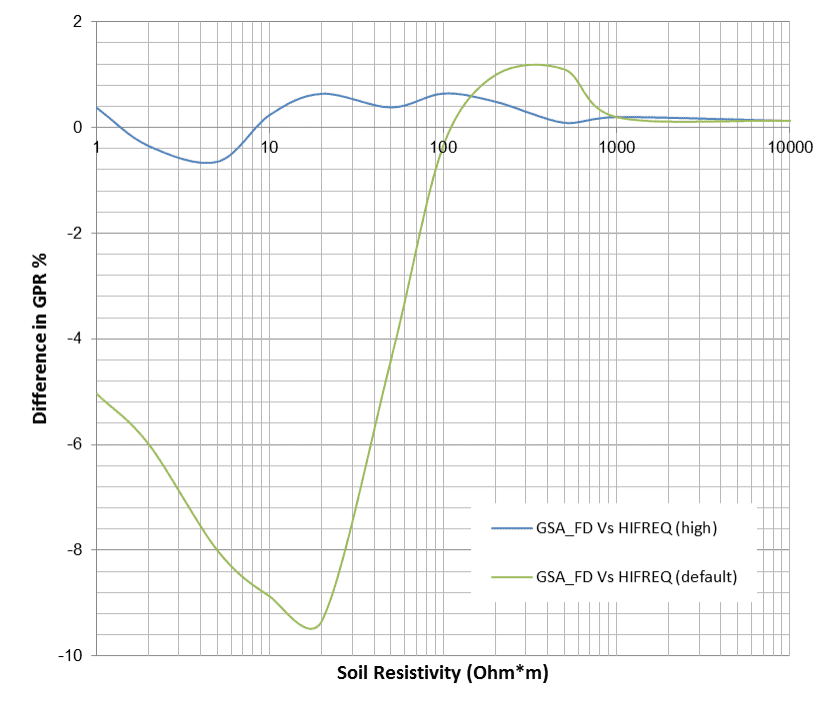

This graph compares XGSLabs (GSA_FD) and another software (HIFREQ). As shown, XGSLabs delivers more accurate and consistent Ground Potential Rise (GPR) results across various soil resistivity levels, making it a more reliable choice for your earthing design needs.
In contrast, software options like the MALT and MALZ versions of CDEGS fall short. Here’s a breakdown of why these alternatives may not provide the same level of accuracy.
- MALT (CDEGS) assumes that the entire earth mat is at the same voltage, which is risky for larger sites with low soil resistivity.
- MALZ (CDEGS) does account for voltage drops along conductors but fails to consider inductive or capacitive effects between conductors.
- HIFREQ (CDEGS), while more comprehensive, still doesn’t match the precision that XGSLabs offers, particularly for complex systems with extensive parallel elements, such as rail networks.
By choosing XGSLabs, you can avoid these pitfalls and ensure that your earthing design is both safe and compliant. The advanced features of XGSLabs allow for precise modeling, making it the ideal solution for projects that demand accuracy and reliability.
Getting the Foundation Correct
First, GreyMatters attended the site to perform a series of soil resistivity (Wenner) soundings using high-accuracy equipment. It can also inject ten times the standard signal current to that of other accepted instrumentation. Using a far more robust system, it can dominate, making it a potential source of in-ground noise. Thus ensuring an accurate interpretation of the returning signal. Besides, higher signal energy can reliably sound to deeper depths, whatever the geology, to provide the subsequent Earthing calculations using the optimum data set. This dataset is particularly crucial for the electrically extensive electrode system.
Finite Element Analysis (FEA) simulation techniques rely on building meaningful representation(s) of the real physical world in a virtual environment. This analysis can involve above ground elements as well as the buried. Indeed, for this case an accurate geometric model built by GreyMatters research engineers including several kilometres of track, the OLE (overhead line equipment) structures, cabling, switchgear, transformers and the earth mat so that the impact from the track bonds, the fence and rebar examined against their positive contribution to the EPR of the site.
Accounting for the impedance contributions and other parallel paths not only better represents ‘real life’ but avoids over-engineering the electrode system by utilising the full mix of accepted elements.
An often ignored part of any earthing system design is the civil engineers, e.g. more specifically, the foundations. Not often recognising that concrete is porous, so when wet has a low resistivity. As a result, rebar can be used to great effect to reduce earth resistance without significant additional cost. This fact by itself had the most significant impact on the touch voltage hazards, together with introducing further surface voltage control and fence bonds.
When modelling systems with above ground components, it is critical to use the HIFREQ module, as MALT and MALZ ignore all above ground structures, while HIFREQ calculates the interactions between ALL the elements (Maxwell’s equations).
GreyMatters’ final design reduced the site touch voltages from more than 3500 V to below the permissible safety threshold of 645 V across the entire site, as well as lowering the EPR by a factor of 10, from more than 9000 V to less than 900 V without introducing significant additional copper.
Summary
Key Points
- Rubbish in = Rubbish out. Robust, accurate, correct Data must be used at the outset to develop a precise model
- High-end soil resistivity testing equipment capable of dominating any in-ground noise. Understanding the soil model is critical to accurate earth design, and inaccuracy here is dangerous.
- Ignoring the contribution parts of the above-ground network can play when modelling the impact of rail bonds. It’s important not to assume something is going to improve the situation – requiring the proof that any additional bonding makes the site safer.
- Designing a safe environment without introducing additional costs. By modelling existing structures, it was possible to use the existing equipment to reduce the hazards on-site without requiring new construction, which more than paid for the cost of the study work.
